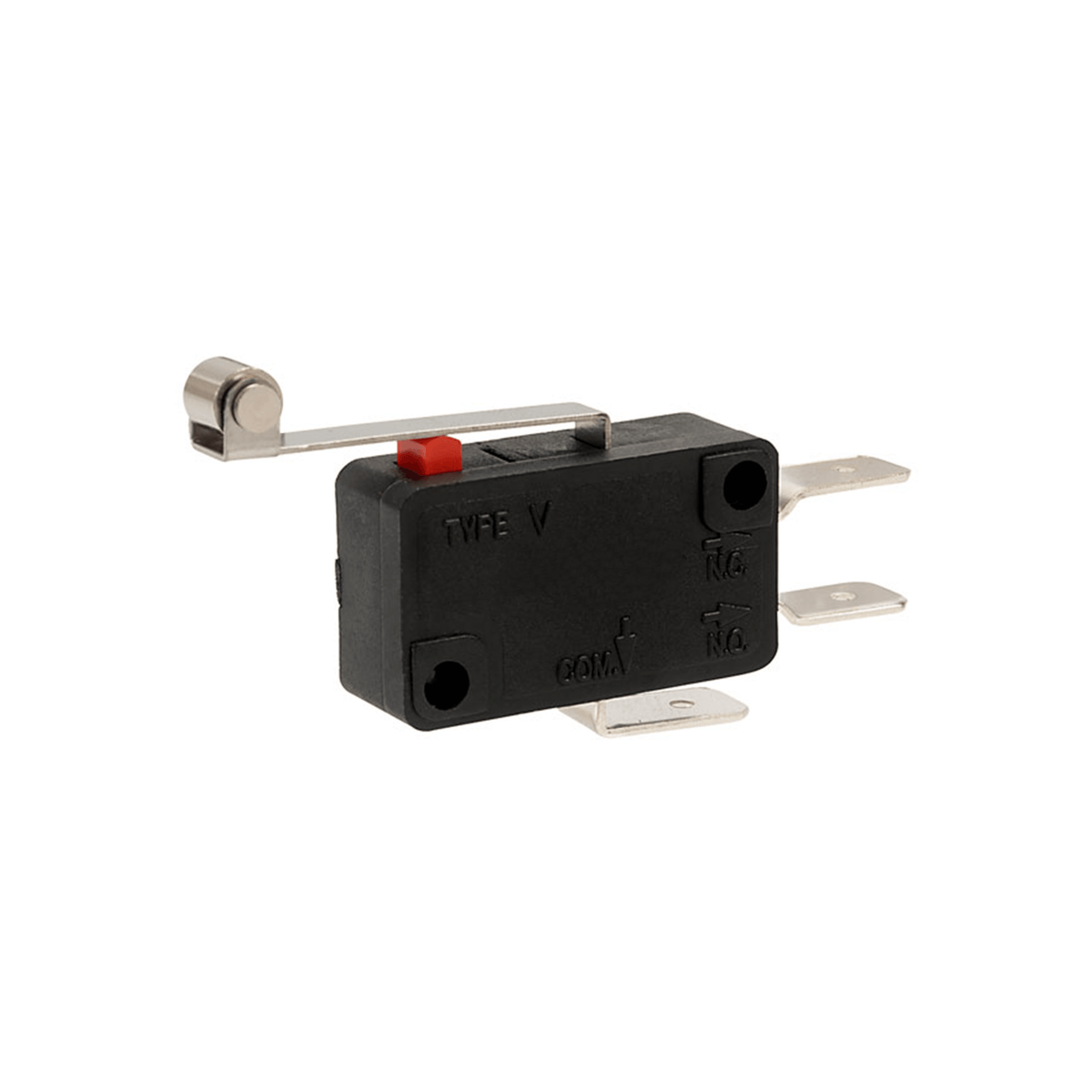

Roller Microswitch - Electronic Component Spares

Replacement roller microswitch which is used on many Taiwanese & Chinese cranes.

If you require a spare part that is not listed, please get in touch via email at help@maxxgrab.com or call us on 01507 441144.

Price

£4.00

Features

  • V3 microswitch, roller actuator
  • 250V AC contact voltage
  • 15A contact current
  • NO-NC contact
  • Solder-lug terminal
  • 1,000,000 ops operating life
  • 150gf operating force
  • 28gf release force
  • 1.5mm pre-travel
  • 0.6mm over travel
  • 0.5mm differential movement
  • 10.3mm wide
  • 7g weight
  • High-quality standard size microswitch
  • Phenolic resin push button
  • Stainless steel lever

Dimensions

  • Height: 15.9mm
  • Width: 27.8mm
  • Depth: 10.34mm
